Heavy Vault Door
About The Heavy Vault Door
Heavy Vault Door: Enhanced Security, Strength, and Fire Resistance
Why choose the Heavy Vault Door? It’s 2x stronger than our Titan model and offers 50% more steel thickness with its 3/8” door plate, making it ideal for medium to high-security needs. Whether you're securing firearms, valuables, or sensitive documents, the Heavy Vault Door provides a balance of strength, fire resistance, and ease of access.
Superior Strength and Durability
Built with a 3/8” solid steel plate, the Heavy Vault Door is designed to handle more significant security threats compared to standard options. The added thickness ensures better resistance to forced entry, while its reinforced structure can withstand high-impact tools that would compromise less robust doors. If your concern for security is medium to high, this vault door provides the perfect level of protection.
Increased Fire Resistance
Fire safety is a crucial factor when selecting a vault door, and the Heavy Vault Door offers excellent fire resistance due to its 3/8” steel construction, which provides better protection than thinner doors. This vault door can be customized with fire-rated seals that expand during extreme heat, preventing fire, smoke, and heat from damaging your valuables.
Larger Door Opening for Easy Access
In addition to security and fire protection, the Heavy Vault Door features a wider door opening. This is a key benefit for those requiring more convenient access to larger items or frequent use of the vault. Whether for personal or business use, the larger opening ensures that you can easily store or retrieve valuables without compromising security.
Key Features:
- 50% thicker 3/8” steel door plate for enhanced security
- Twice the strength of the Titan Vault Door for medium to high-security applications
- Improved fire resistance with optional fire-rated seals
- Larger door opening for convenient access to contents
- UL-rated Group 1 lock with upgrade options for biometric or digital access
The Heavy Vault Door is the perfect choice if you need advanced security, superior fire protection, and a larger entryway for storing important valuables. Its 3/8" steel construction ensures peace of mind, offering the strength and durability you need for medium to high-security applications.

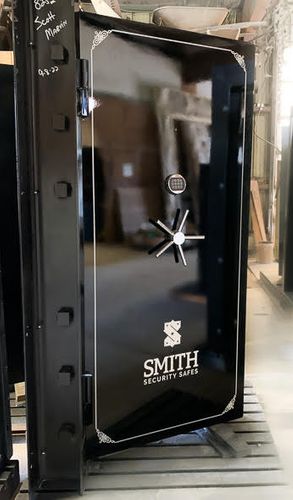

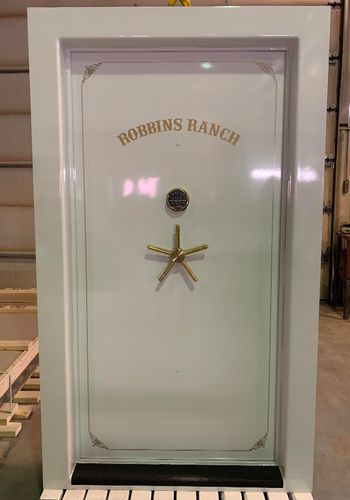

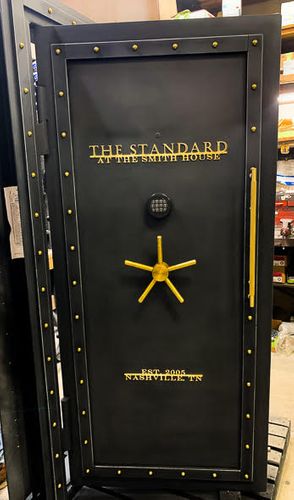

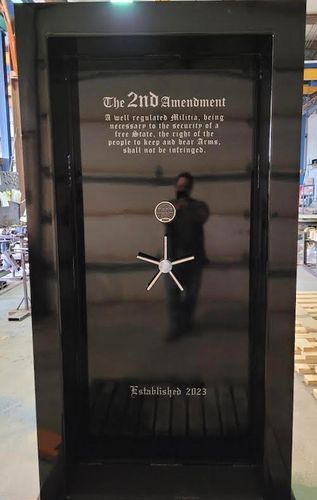

Photo Gallery
The Heavy vault door is a great upgrade from the Titan series. Adding a 50% thicker door plate and 75% more plungers, the Heavy is a logical step up for those looking for more security and a larger door opening.
Why choose the Heavy Vault Door?
2x stronger than the Titan vault door and 50% thicker door plate
Security concern is medium to high
Fire protection is important ⅜”” steel holds up to fire better than ¼” steel
A larger door opening is important
The Heavy vault door is a great vault door to use in a concrete room. This door comes with 3/8" steel door skin and an 8” formed channel frame. The 8in frame makes the Heavy vault door a great match for a concrete wall. This door is only slightly more expensive than the Titan vault door, but you get a lot more steel for your money. This door weighs 200 pounds more than the Titan vault door. You get an extra 125 lbs of steel in the front plate alone! More steel = better security.
Rough Opening Needs To Be 82” x 44”

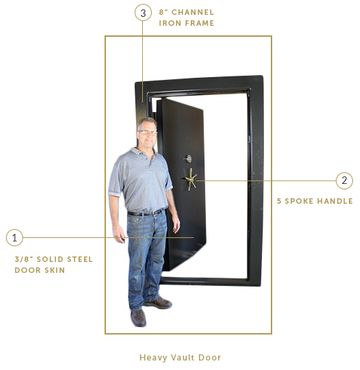

The Heavy vault door is mounted on an 8” formed channel frame. It comes with a 3/8” solid steel door skin, giving it a 2 7/8" overall door thickness. The door weighs in at 790 pounds and comes with 14 locking plungers made from 13/16” diameter stainless steel.
The Heavy vault door works very well with 8” block or poured walls. The Titan door provides good security for wood walls but the Heavy vault door is a better choice for concrete and block.

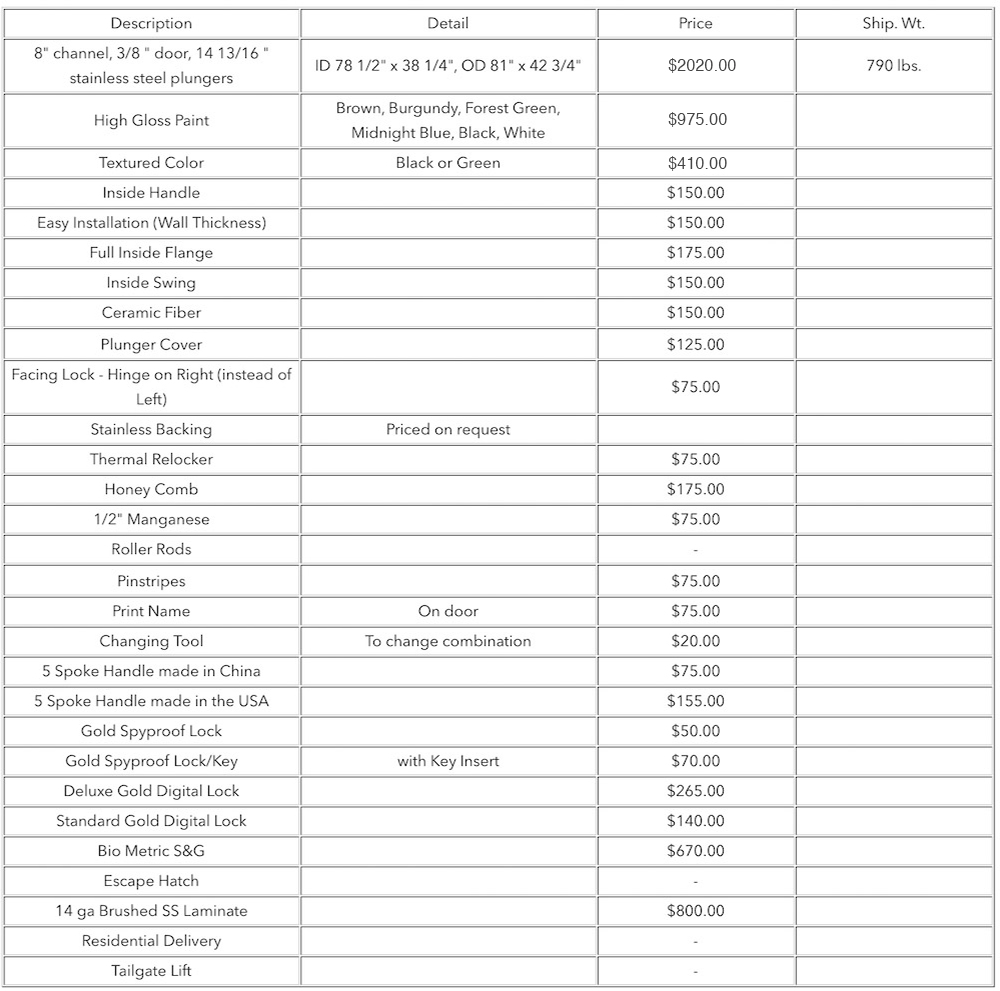

Base Price: $5,250 (Base Price Includes - Door, Frame, StrongHold Clamping Flange System, Textured Paint, Standard Digital or Spyproof Mechanical lock, 5 spoke Chrome handle, inside release and panic room features, and the thermal relocker)
Delivery: Worldwide
Installation: Nationwide
The Heavy vault door comes with a 3/8” door skin with an overall thickness of 2 ⅞” and a 8” formed channel frame. This door weighs around 800 lbs and has 14x 13/16” stainless steel locking pins. The Heavy vault door can easily fit 8in and 10in walls or can be mounted to any wall thickness with a custom frame or brackets. The rough opening for the Heavy vault door is 82” x 44”. Have a rough opening other than 82” x 44”?Just give us your opening size and we can make a custom door for your opening. For stability, it’s best to mount the door directly to the concrete with all wood removed.
The Titan Vault Door vs The Heavy Vault Door:
The Heavy vault comes with a 3/8” steel plate, the Titan has a ¼” door skin
The Heavy vault door comes with 14 stainless steel locking pins instead of 8 on the Titan vault door
The Heavy vault door comes with 8” formed channel instead of 6” on the Titan vault door
The Heavy vault door is bigger and weighs 200 lbs more than the Titan
All Smith Security vault doors come with a limited lifetime warranty for all parts except the lock and paint.
We also offer worldwide delivery and nationwide installation. Read more about our professional installation.
